Physical Model Perspective

Avion Market allowed for an opportunity to use environmental strategies to make a space functional while also learning about structural typologies. Given a site located in Chicago, the overall task was keeping a primarily open-air market warm enough for its occupants while also having an appropriate design. I developed a vernacular response to the site condition and the task at hand. To take full advantage of sunlight as an economic resource, the windbreaking roof has a cascading opening strategy on the South side to allow for passive heat gain via sunlight penetrating the space.

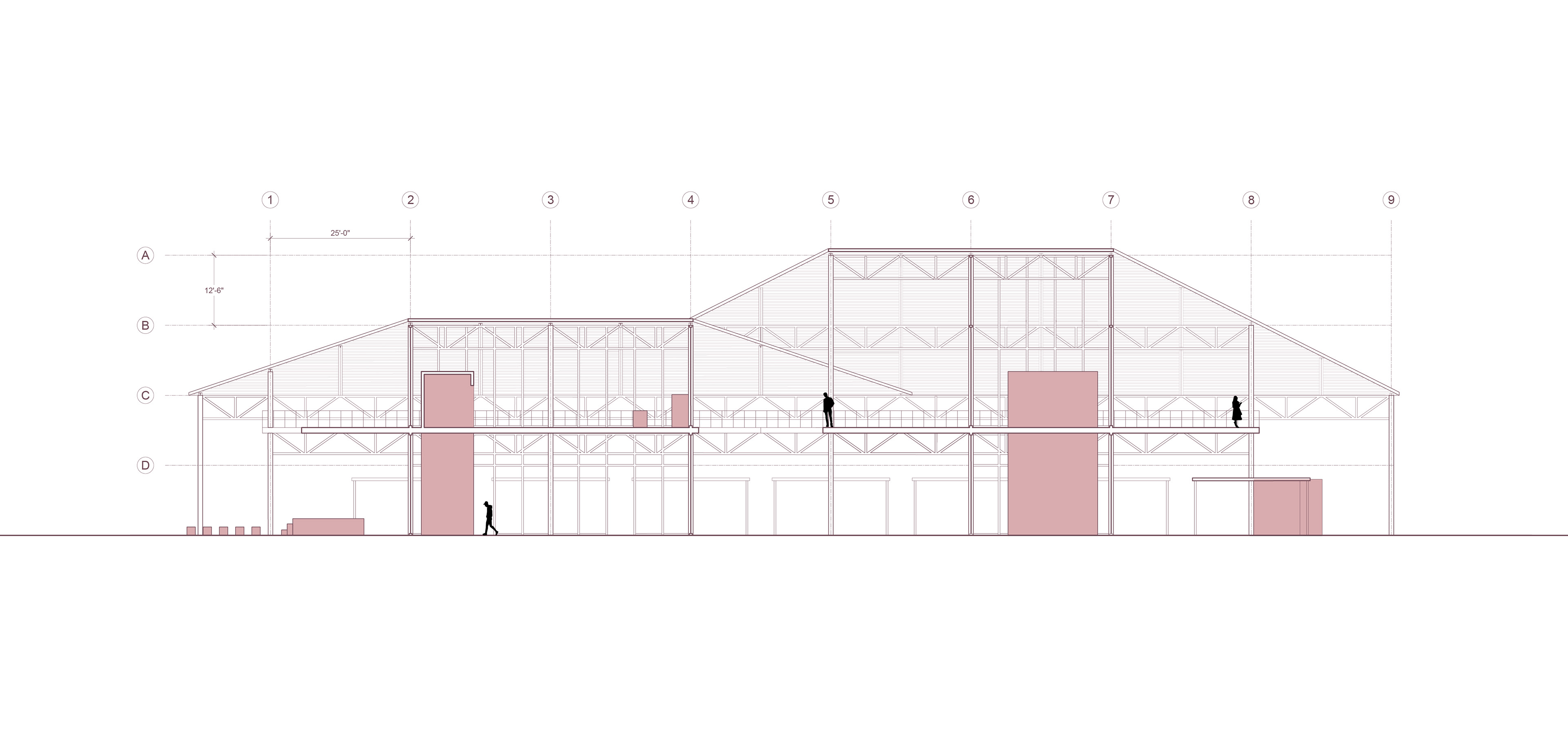

NS Section

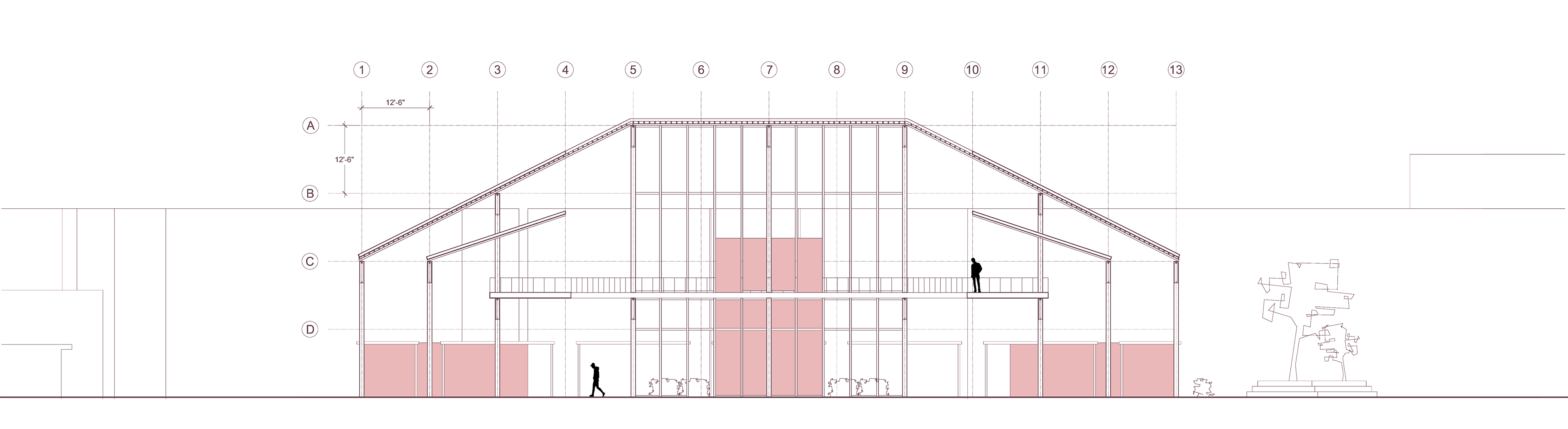

EW Section

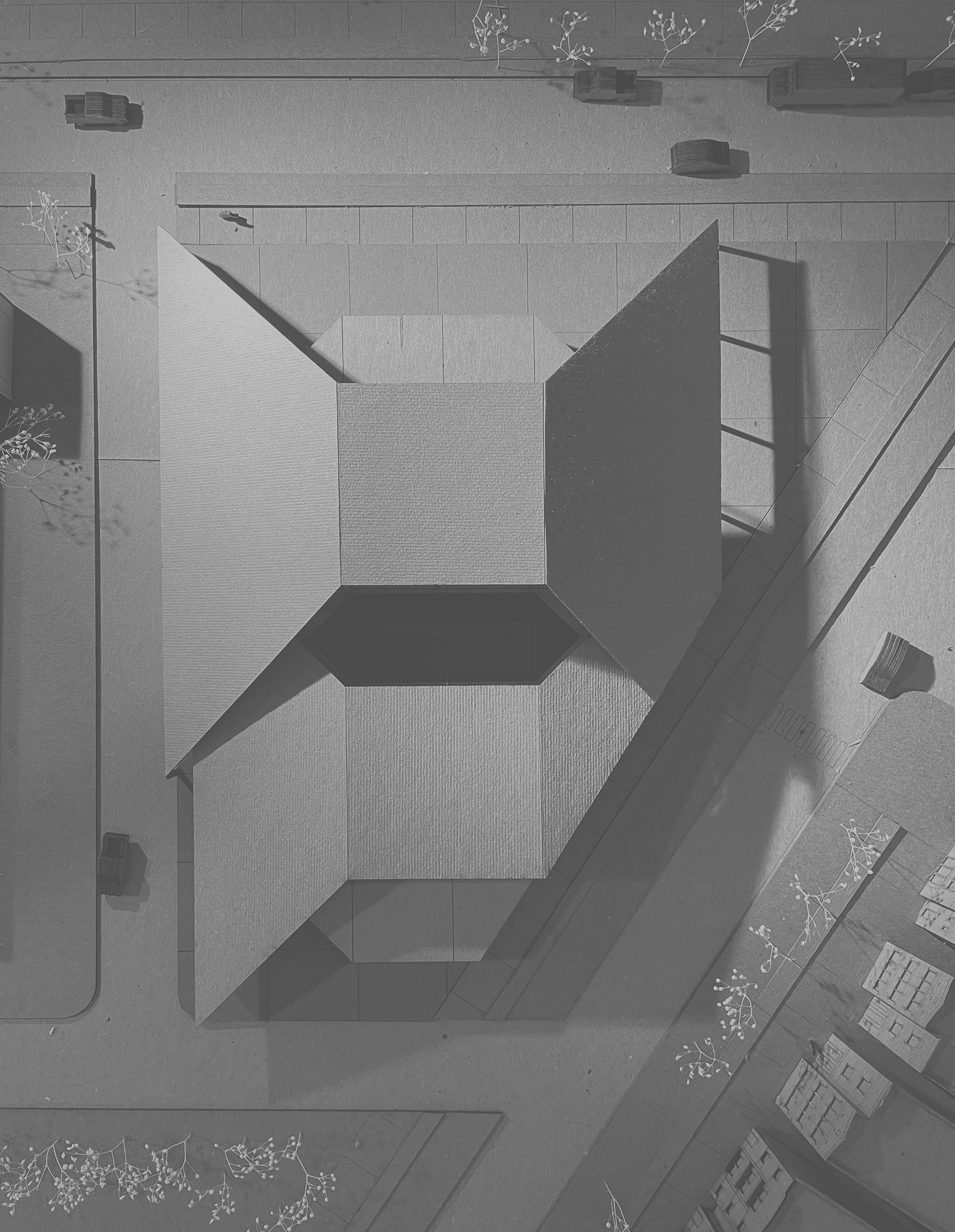

Physical Model Perspective 01
Physical Model Perspective 01

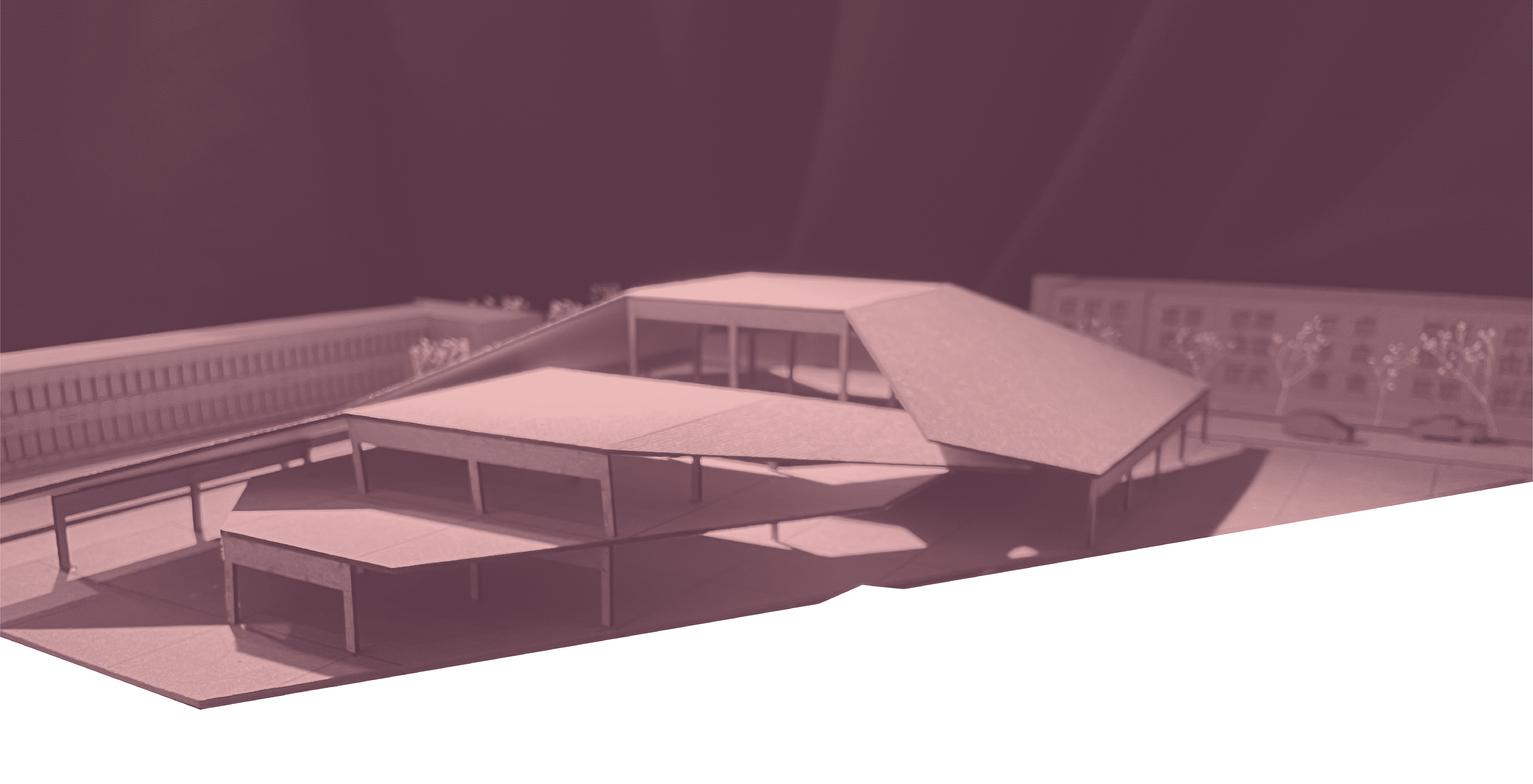

Physical Model Perspective 02
Physical Model Perspective 02
Avion Market was derived from extensive research into the big-box structural type. Using a local Walmart for reference, I carefully measured and analyzed the use of steel trusses, dimensions of a single bay size, and roofing material.

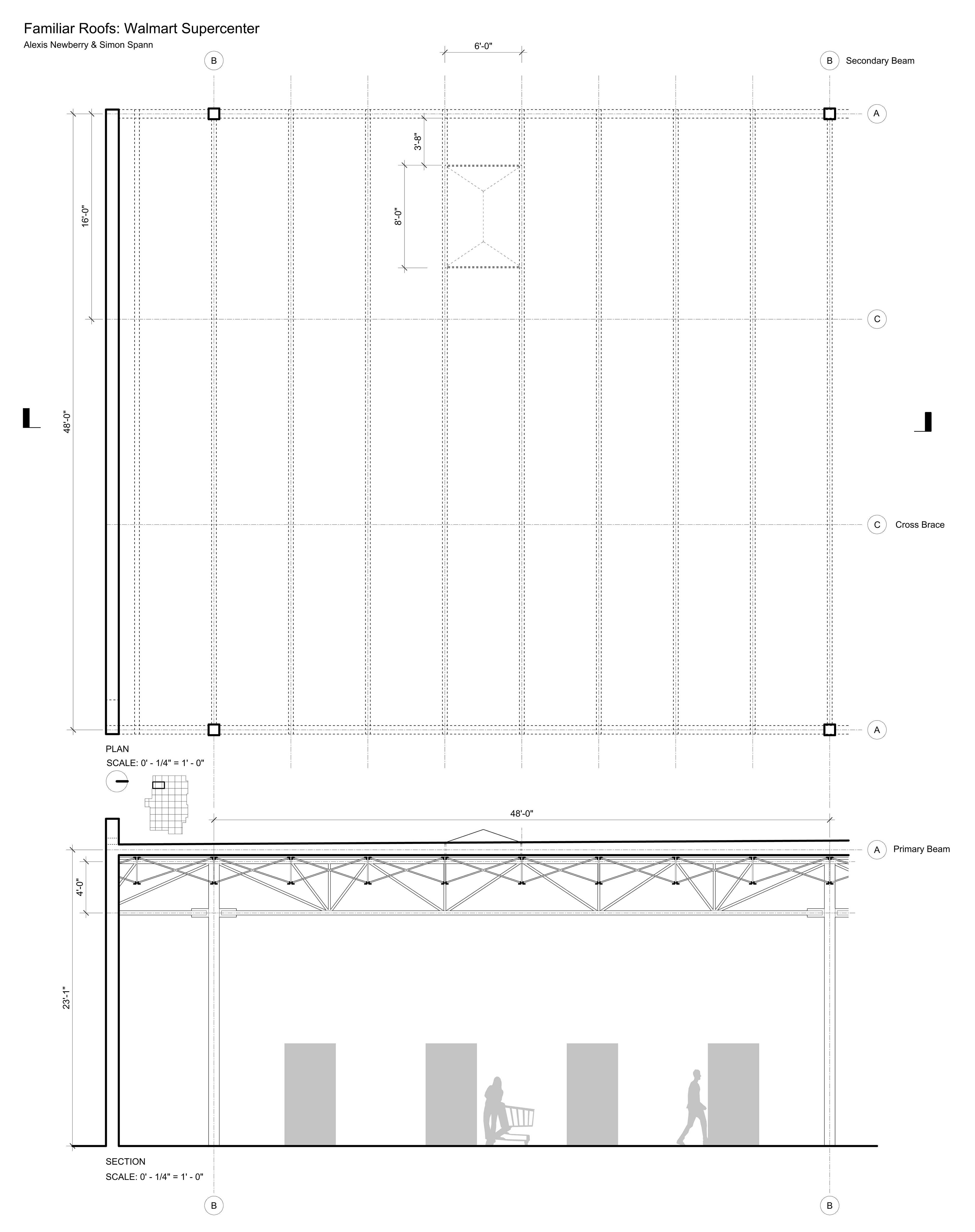

Big-Bix Precedent Study
Big-Bix Precedent Study

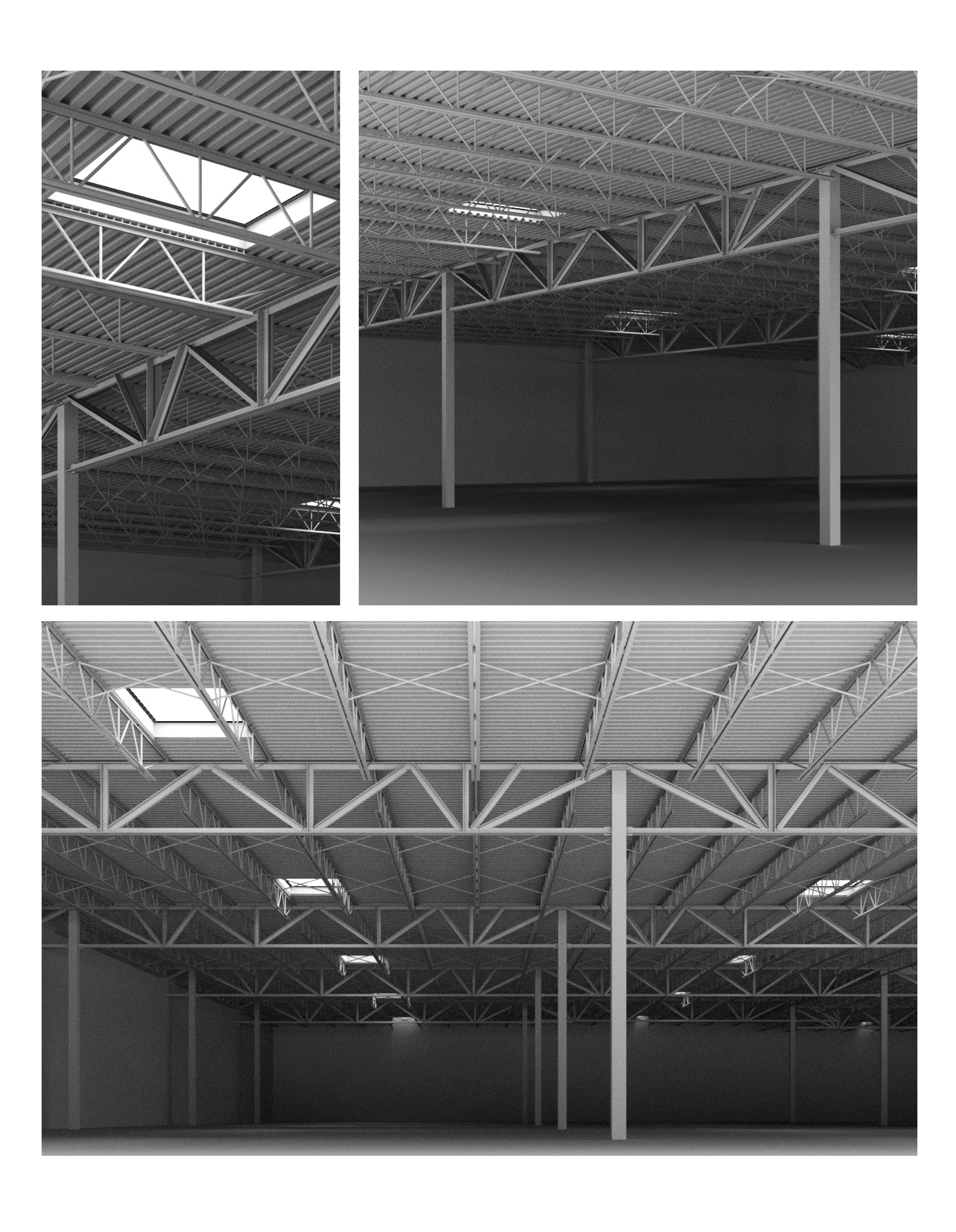

Big-Box 3D Model Perspectives
Big-Box 3D Model Perspectives

Big-Bix Physical Model
